D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-3WK3250-1TE | 5.6956 |  |
2865 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3WK3250-1TE | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets and Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.520" (13.20mm) | |
 |
627-037-321-059 | 4.8845 | |
8150 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-037-321-059 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
638-078-231-078 | 14.5300 | |
5827 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 638-078 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-638-078-231-078 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 4 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 78 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 5 (DD, D) High Density | - | |
 |

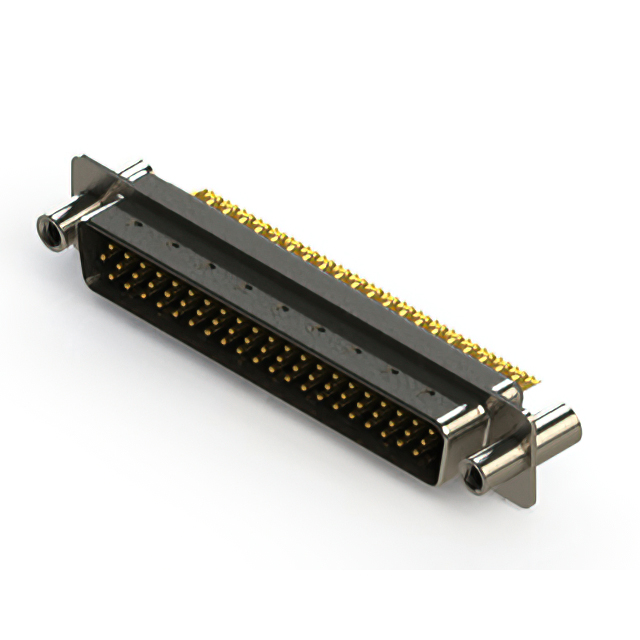

637-M62-232-BT4 | 12.9412 | |
6820 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 637-M62 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M62-232-BT4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | - | ||
 |
B57-024-660IE02 | - | |
8959 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-660IE02 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-2WK2240-2N4 | 7.4553 | |
7871 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2WK2240-2N4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets and Male Pins | 1 | Gold | Flash | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
630-3W3-240-7TA | 5.9508 | |
9140 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3W3-240-7TA | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax | 3 (Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.370" (9.40mm) | |
 |
627-M37-323-GN2 | 32.9366 | |
9373 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M37 | Green | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M37-323-GN2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
629-13W6640-7NA | 30.4137 | |
6107 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-13W6640-7NA | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (7 + 6 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | 0.370" (9.40mm) | |
 |
628-25W3224-2NC | 11.6584 | |
4463 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-25W3224-2NC | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | |
 |
630-037-340-533 | 3.9168 | |
7920 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-037-340-533 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.409" (10.40mm) | ||
 |
630-5W5-250-3TB | 7.4185 | |
9123 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-5W5-250-3TB | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | |
 |
B57-050-222I322 | - | |
3212 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-222I322 | EAR99 | 8536.69.8000 | 1 | |||||||||||||||||||||||||||
 |
630-11W1240-5TC | 4.7046 | |
3842 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-11W1240-5TC | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 11 (10 + 1 Coax) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |

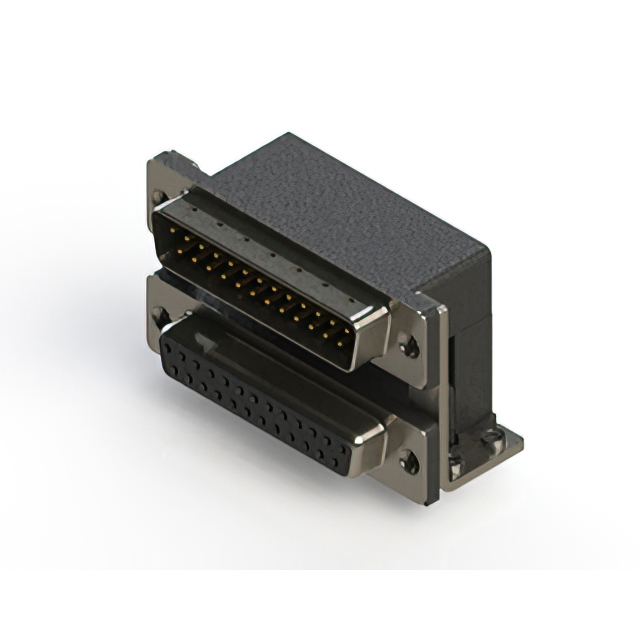

663-025-364-055 | 10.1475 | |
5430 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 663-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-025-364-055 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 25, 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
630-21W4250-2TB | 9.6899 | |
9020 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W4250-2TB | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
B57-050-266I503 | - | |
8069 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-266I503 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-150-565I122 | - | |
9521 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-565I122 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-3WK3640-5TE | 10.4384 | |
7049 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3WK3640-5TE | EAR99 | 8536.69.4040 | 2,000 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax | 3 (Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.370" (9.40mm) | |
 |
662-037-264-041 | 12.6124 | |
4947 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 662-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-662-037-264-041 | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2, 2 | Gold | Flash | 3A per Contact | - | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | |
 |
634-M44-263-WT2 | 12.1202 | |
8584 | 0.00000000 | EDAC Inc. | 634-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 634-M44 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-M44-263-WT2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 3 (DB, B) High Density | 0.350" (8.89mm) | ||
 |

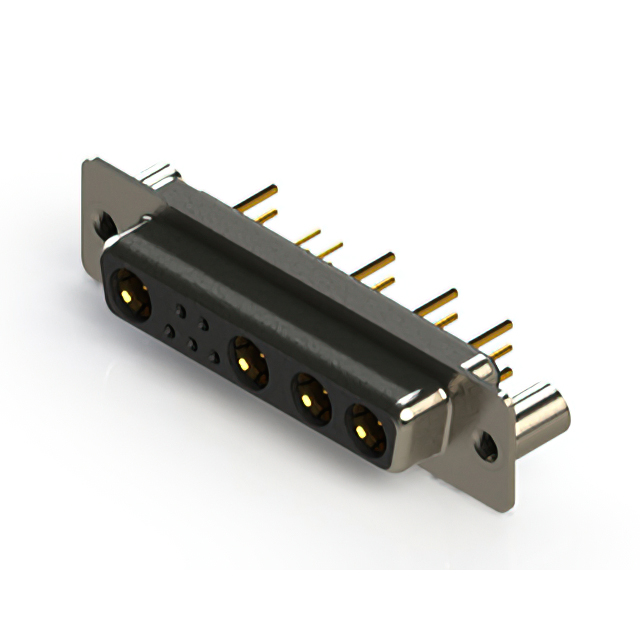

628-9W4-624-5NB | 22.7766 | |
7074 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-9W4-624-5NB | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 9 (5 + 4 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | - | |
 |
627-M37-623-BT4 | 39.1725 | |
1355 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M37 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M37-623-BT4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
629-36W4650-4ND | 36.2691 | |
6632 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4650-4ND | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |
 |
629-M37-240-BT5 | 9.2074 | |
4212 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-M37 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M37-240-BT5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 4 (DC, C) | 0.370" (9.40mm) | ||
 |
638-044-231-273 | 8.0398 | |
4078 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 638-044 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-638-044-231-273 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | - | |
 |

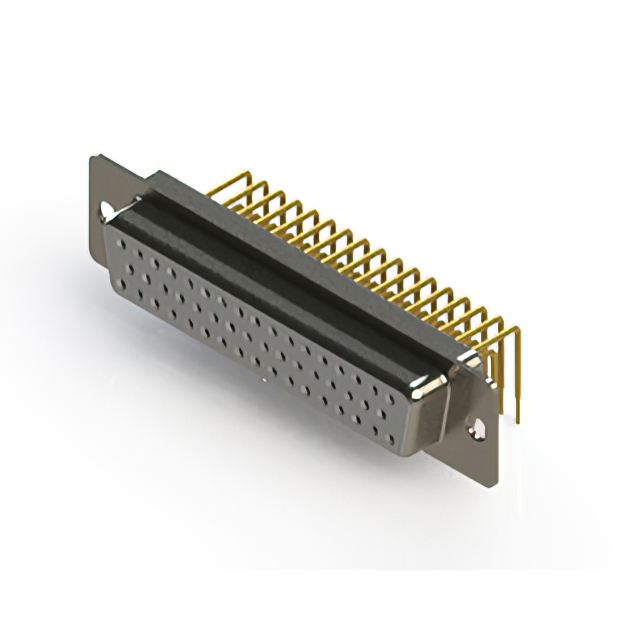

630-M50-340-WN1 | 19.8513 | |
2689 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-340-WN1 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | ||
 |
B57-024-660I503 | - | |
3707 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-660I503 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
|
627-050-322-543 | - | |
9492 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Obsolete | -55°C ~ 85°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-050 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-050-322-543 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 5 (DD, D) | - | |
 |
629-2WK2240-7NE | 9.1001 | |
4750 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2WK2240-7NE | EAR99 | 8536.69.4040 | 100 | Plug, Female Sockets and Male Pins | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax | 2 (Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.370" (9.40mm) |
